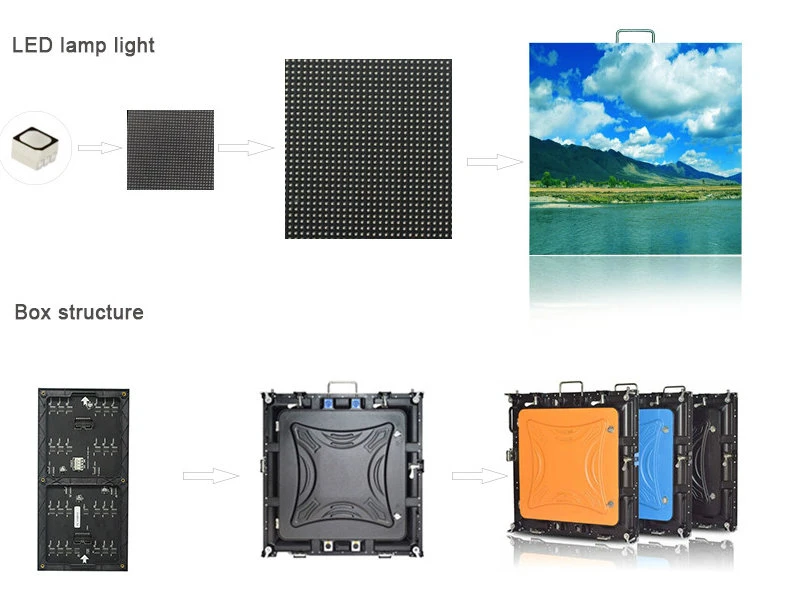

Led display panels P6 indoor Cabinet 576x576mm Features:
1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style, front-maintained style and front-serviceable style with magnets.
Led display panels P6 indoor Cabinet 576x576mm Applications:
Indoor Rental LED Screen
Indoor commercial LED screen,
Indoor stage background LED curtain screen
Led display panels P6 indoor Cabinet 768x768 Specification:
LED Module | |
Pixel Pitch | 6 |
Pixel configuration | SMD3528 1R1G1B |
Density | 27,778 pixels/m2(real pixel) |
Module Resolution | 32(L) * 32(H) |
Module Dimension | 192(L) * 192(H) * 15(D) |
Driving Mode | Constant current, 1/16duty |
Module Mask | Pure Mask -High Contrast Screen |
LED Cabinet | |
Module Quantity in a Cabinet | 3(L) *3(H) |
Cabinet Dimension | 576(L)*576(H)* 90(D)mm |
Cabinet Resolution | 128(L) * 128(H) |
Cabinet Material | Steel |
Cabinet Weight | ≈22KG |
Electricity Parameter | |
Optical Ratings | |
Brightness | ≥1500 cd/m2 |
Viewing Angle | 120° |
Best Viewing Distance | ≥3m |
Gray Grade | 16,384 levels for each color |
Display Color | 4,398,046,511,104 |
Brightness Adjustment | 100 grades by software or automatically by sensor |
Power Supply | |
Operation Power | AC100-240V 50-60Hz Switchable |
Max. Power Consumption | 680W/m2 |
Average Power Consumption | ≈240W/m2 |
Control System | |
Correction Scale Level | 16bits |
Frame Frequency | ≥60Hz |
Screen Refresh Frequency | ≥1800Hz |
Gamma Correction | -5.0~5.0 |
Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
Control Distance | 100m(Ethernet cable); 10KM(optical fiber cable) |
Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
Color Temperature | 5000-9300 adjustable |
Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
Reliability | |
Working Temperature | -20~+60 ºC |
Stored Temperature | -30~+70 ºC |
Working Humidity | 10%~90% RH |
Lifetime | 100,000 hours |
MTBF | 5000 hours |
Continuous Working Time | ≥72 hours |
Protection Grade | IP30 |
Out of Control Pixel Rate | ≤0.01% |
Rental screen installation.
2. The number of a main power supply conventional carrying case is 15PCS, and it cannot be plugged in and out;
3. A network cable has a maximum load of 640,000 points, and the length of the network cable is preferably within 50m.
Certifications
FAQ:
1) Q: How can I place an order and how it works?
A: Generally, first, we could make samples for customers, according to the artworks, affirmed material, processing or workmanship. After the sample is confirmation, we will produce the mass production. And, meanwhile, we will show you the pre production.
2) Q: What's the shipment method?
A: We often use DHL, FEDEX. UPS, TNT or Sea Shipping to ship our products.
3) Q: What's the payment method?
A: You can pay by L/C, T/T, Western Union
4) Q: Can I have samples to test the quality?
A: Yes, you can buy any sample to test the quality.
5) Q: What's the delivery time and can you lower the price?
A: It depends on your order and which shipping way you choose.The delivery time is usually within 7-9 business days. If you have placed an order of large quantities, then, of course, the price can be lowered.
