SMD2835 60LED/M flexible LED Strip with UL CE RoHS Certificate
Our company advantage:
1, Experience--We have 10 years experience of high quality LED strip |
2, We have 5200 factories, 150 employees, including 15 engineers, we focus on strips. Focus make us more professional. |
4. All of our LED strip with TUV CE RoHS UL certificate, UL No.: E479167; |
5. All our strip with 8 level CCT from 2200-6500K. Special color: Blue, pink, ice blue, Purple, 1500-1700K. |
6. High CRI RA>80/90/95 for option. |
7. OEM service without MOQ, like the length, watta and so on. |
8. Good After Sales Service--3-5years warranty and always offer relative technical support |
9. High speed and accuracy SMT Machine ( YAMAHA ), quantity 6 PCS. |
10. Lead-free during the whole process. |
11. Test report file and IES file are available. |
12.5 times 100% checking during production for IP20 LED strips, plus the FQC, QA, and OQC checking, so we have 100% confidence in our products |
13, Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam). |
14, One Bin LED selection to ensure color consistency. |
15, Our price is reasonable in the market with so good quality. |
16, Our factory will offer 100% support to push our good cooperation! |
17, We can support your business(LED strip, controller and so on) without MQQ for previous cooperation. |
Picture:

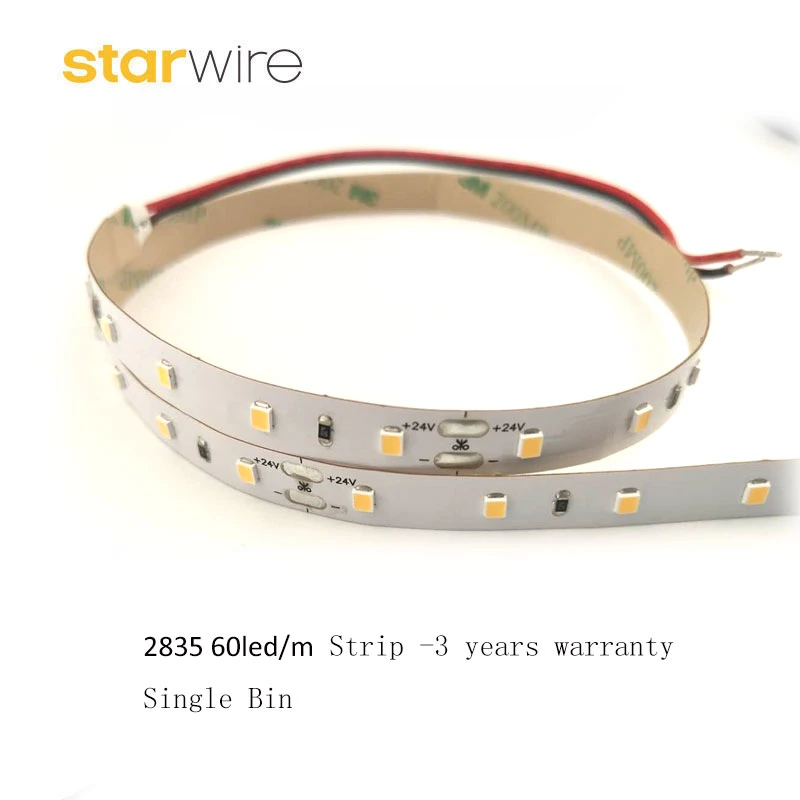

2835-60led/m:
5m/roll / SMD2835 / 60PCS/m / 10mm PCB / 11.5W/m / DC12V & DC24V/1035 lm/m / 3 years warranty
2835-120led:
5m/roll / SMD2835 / 120PCS/m / 10mm PCB /12.8W/m / DC12V & DC24V/1216 lm/m / 3 years warranty
Model No. | SW-SMD5050 LED STRIP | SW-SMD5050 LED STRIP |
5050 LED | Tick double layer 2 oz copper PCB for excellent thermal management(Single bin and 3-step Macadam) | |
LED Quantity | 60leds/m | 120leds/m |
Power | 11.5w | 12.8W/m |
Input Voltage | 12V/24V DC | 12V/24V DC |
Luminous Flux(lm) | 500lm | 1000lm |
Rendering Index | 80Ra (90Ra) | 80Ra (90Ra) |
Working lifespan | > 30,000hrs | >30,000hrs |
Protection Rate | IP20, IP65, IP67,IP68 | IP20, IP65, IP67,IP68 |
Dimension | 5000*10*1.8mm | 5000*10*1.8mm |
Color Temp(K) | 2300k, 2500k, 2700k, 3000k, 3500k, 4000k, 5000k, 6000k , Red, Green, Blue, Orange, Amber, Yellow | |
Packing | 5Mts/Reel,100Reels/CTN Anti-Static Bag + Carton | |
Warranty | 3 Years | |
Certificate | CE, ROHS UL | |
2. Unique design --SMD2835 Strip;
| Item No | Description | Solution for use |
| SMD2835-140led/m | 2.5m/roll / SMD2835 / 140PCS / 6mm PCB / DC24V / 10W / 1150lm / CRI>80 or >90 / WW/NW/CW | With 1013 aluminum profile, Lighting output more even, no spot |
| SMD2835-140led/m | 2.5m/roll / SMD2835 / 140PCS / 10mm PCB / DC24V /10W / 1540lm / CRI>80 or >90 / WW/NW/CW | With 1612 aluminum, its light output is very good |
| SMD2835-182led/m | 2.5m/roll / SMD2835 / 182PCS / 10mm PCB / DC24V 15W / 1800lm / CRI>80 or >90 / WW/NW/CW | With 1612/1919 aluminum, its light output is very good |
Application:
For installation:
We really would like to invite you to visit our Guangzhou Lighting exhibition!
Time:9th-12th
Booth No:D16 10.3
SMD2835 60LED/M flexible LED Strip with UL CE RoHS Certificate
Welcome to get your inquiry!
